Graphical Dashboard for MODBUS terminal
NOTE: data rate may drop if MODBUS terminal page is not visible. That is caused by Webbrowser trottling script execution on incative pages. You may bring the MODBUS terminal as a separate vindow, and keep it visible on a screen.
How use controls
Modbus registers are mapped to the variables named Var0, Var1, Var2,... where the number is the register address
For example register address 40003 represented as Var40003
Add controls with desired variable names, and press "Apply"
Check available controls in toolbox

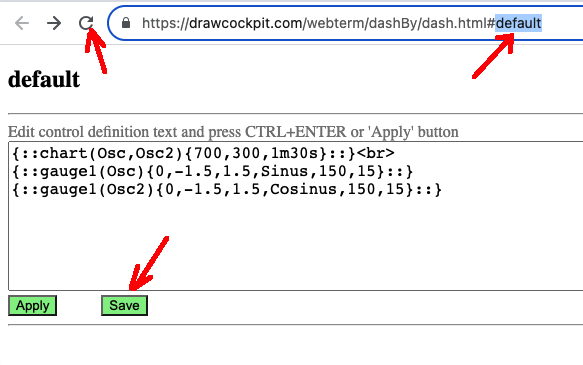

How to save the dashboard under new name
1. Click on dashboard page you want to copy
2. Change the dashboard name in the URL
3. Refresh the page
4. press Save button
